- Need a Machine that splits Blue Gum, Old Man Pine or Macrocarpa this machine will power through it.
$4800 Including GST

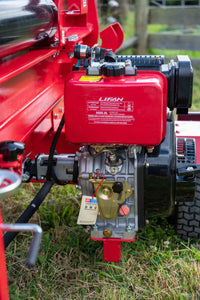

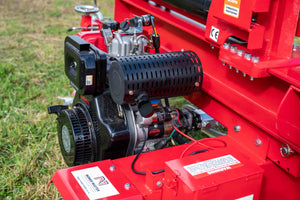

- 12 HP Direct Injection Diesel Motor Operating at 3800RPM
- 499cc Lifan Motor
- 22MPA or 3200 psi Operating Hydraulic Pressure
- Decompression Lever for Easy Starting
- Diesel Hi Torque means No bogging or stalling like a petrol motor
- 5.5Ltr Diesel Fuel Tank with in tank fuel filter.
- Diesel Motor is self bleeding doesn't matter if you run out of diesel it will fire right back up when full again.
-
Cutting capacity:
- Max Dia.:650mm
- Max Length: 650mm
- Machine Width 1.25M
- Machine Length 2.28M
- Hydraulic Tank Specifications 200mmH x 200mmW x 850mmL
- Hydraulic Tank Size 34 Ltr.
- Electric Key Start and Pull Start
- Charges Battery in Operation
- 12Volt 36AmpHour Battery 300CCA

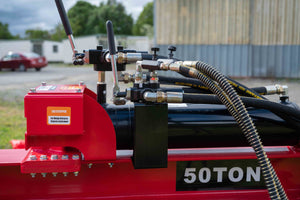

- 6" 50 Ton Hydraulic Ram with 650mm Travel (6" Outside Diameter Cylinder)

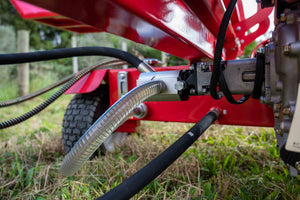

- 18GPM BUCHER 2 Stage Hydraulic Pump
- 18 Second Full Cycle Time. (650mm Stroke So if you are splitting wood for the fire generally your wood size is down to 300mm which means you can 1/2 the cycle time)
- One piece control valves
- Automatic Detent / Return Hydraulic Control Valve
- Best Quality Industrial 4 wire hydraulic Hoses and Industrial Hydraulic Hose Fittings.
- Our Fittings wont split due to vibrational wear or break if a log gets dropped on them like some on the market.

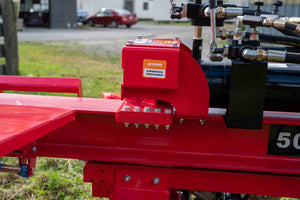

- Log Stripper. Helps Remove Stuck Logs

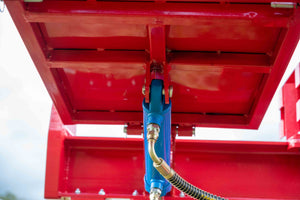

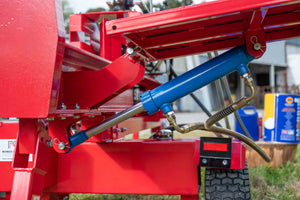

- Hydraulic Operated Lifting Table.
- Lifting Table Also has an Automatic Detent function In The Up Direction for the Big Jobs when you need that Extra Free Hand.
- Lifting Table Hydraulic Ram Speed Control Valves for Both Directions
- Removable Lower Table with Quick Release Pins
- Table Dimensions 1.5M Long .520M Wide Lays Flat on the Ground for EASY Loading

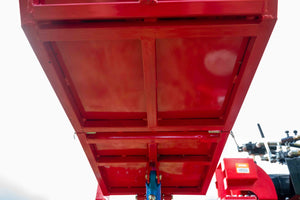

- Table Construction 30x30 Box section with 3mm Sheet Steel over the top.

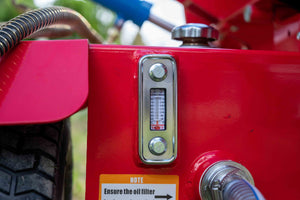

- Hydraulic Oil Gauge

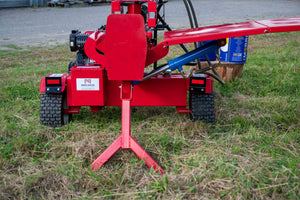

- Foldable Height Adjustable Jockey Wheel with Brake
- All Terrain Tires 220mm Rim, 160mm Wide 400mm OD Tire (Outside Diameter)
- Heavy Duty 1 7/8" Tow Bar Coupling
- Operation in Horizontal Position
- Heavy Duty H Beam Construction
- Footprint 1.2M Wide x 2.4M Long
- In-tank Hydraulic Oil Filter

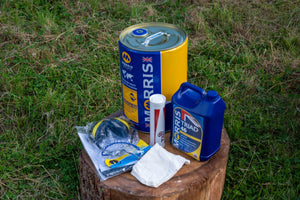

- Supplied with over $250 Dollars of Lubricants Free
- Supplied with 25 Liters of Quality Petronas Hydraulic Oil
- Supplied with Petronas Engine Oil
- Supplied with 1 tube of grease for the beam
- Complimentary Safety Glasses, Ear Muffs and Gloves
- Customer Feedback is "These Machines Handle The Real Knotty Wood With Ease"
- Fully Assembled Machines Available Contact MowerMasterLtd@Gmail.com for Availability and Shipping Costs
- Full 2 Year Parts and Labour Warranty
- Freight to the nearest MainFreight Depot OR your local farming supplies store. $250+NI $350+SI
- Contact sales@mowermaster.co.nz
- Call 0284615112 To see if we can get it to you cheaper or delivery to your door if it is available
